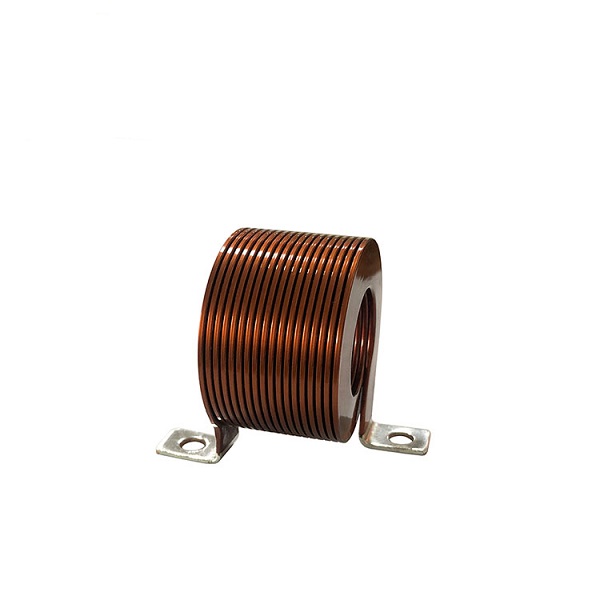

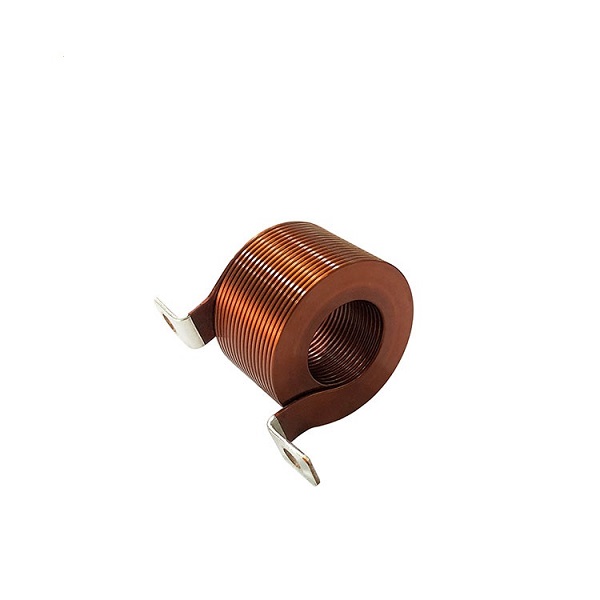

New Energy Flat Coil

Material

200℃~220℃ Class Flat Enameled Copper /Aluminum Wire/Bare Copper/Bare Aluminum Wire, etc.

Use 200~220 class wire to make the coil temperature resistance better

Wire thickness（mm）

0.05~6.0

/

Wire width（mm）

0.6~20.0

The maximum width to thickness ratio that can be wound is 30 times

Cross-sectional area（mm²）

0.1~60mm²

/

Winding Method

Vertical Winding, Flat Winding, Bifilar Winding

/

Winding Direction

Clockwise Winding, Counterclockwise Winding

/

Shape

Round/Rectangle/Racetrack/Triangle/Trapezoid

/

Processing

Winding/Bending/Paint removal/Soldering/Perforating/Riveting/Welding/Tapping

The diameter of the inner hole should be more than 1.5 times the line width

Height of coil

≤95mm(0.75~200 Turns)

Height of Coil Calculation：

Height=Wire thickness*Gas Coef*Turns
