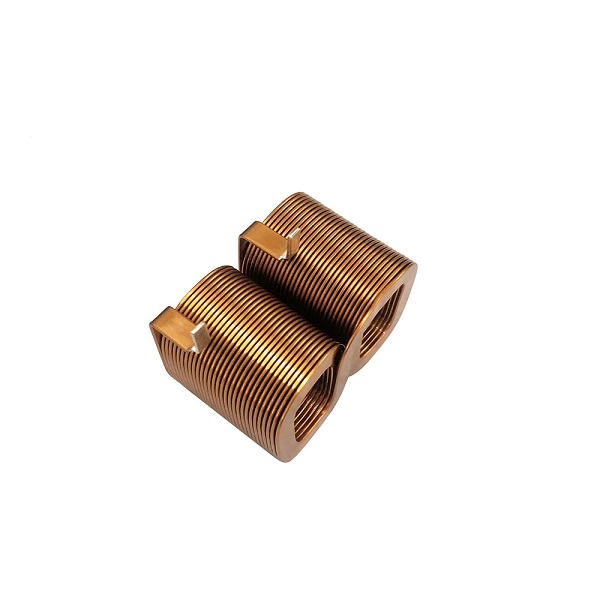

FENGXIE Electronic is a high-tech enterprise specializing in R & D, production and sales of flat wire coils,
triple insulation wire coil, high-power inductors and metal stamping parts.
Customizable Range
Item | Tips | |
Material | 200℃~220℃ Class Flat Enameled Copper /Aluminum Wire/Bare Copper/Bare Aluminum Wire, etc. | Use 200~220 class wire to make the coil temperature resistance better |
Wire thickness（mm） | 0.05~6.0 | / |
Wire width（mm） | 0.6~20.0 | The maximum width to thickness ratio that can be wound is 30 times |
Cross-sectional area（mm²） | 0.1~60mm² | / |
Winding Method | Vertical Winding, Flat Winding, Bifilar Winding | / |
Winding Direction | Clockwise Winding, Counterclockwise Winding | / |
Shape | Round/Rectangle/Racetrack/Triangle/Trapezoid | / |
Processing | Winding/Bending/Paint removal/Soldering/Perforating/Riveting/Welding/Tapping | The diameter of the inner hole should be more than 1.5 times the wire width |
Height of coil | ≤95mm(0.75~200 Turns) | Height of Coil Calculation： Height=Wire thickness*Gas Coef*Turns |
